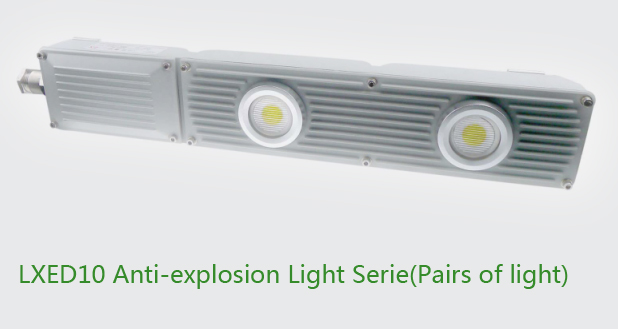

Festure

Use metal-embedded and sealed LED light source,

Good heat conduction and heat dissipation

Energy-efficient and lower light decline ratio

The Lights with good heat resistance seals to effectively prevent the gas dust invasion

The product has features of simple shape, distinguished structure, fine heat dissipation, perfect light matching, endurance, and etc.

Mainly used in petrochemical plants, oil platforms, gas stations, oil pump, transit stations and other inflammable and explosive places.

Technical parameter

Input voltage                                                         AC80~265V

LED luminous  decay rate in first 2 years          <8%

Color temperature                                                2800K~5500K

Color rending index                                              Ra≥70

Light efficiency                                                     70~110lm/w

Lighting angle                                                       70°~140°

Service life                                                            >50000h

Protection  grate                                                   IP67

Illumination unformity                                            ≥0.6

Storage temperature                                           -35℃~50℃

Surrounding temperature                                     -40℃~50℃

Surrounding  humidity                                          10%~90%

Selection Table

      Modle No.               Rated voltage       Rated power        Luminous flux (lm)        Proof mark

LXED10-576-2-40            AC80~265V            40W                   3200                     Exdemb ⅡCT4

LXED10-576-2-50            AC80~265V            50W                   4000                     Exdemb ⅡCT4

LXED10-576-2-60            AC80~265V            60W                   4800                     Exdemb ⅡCT4
